Binding energy calculation

Download Tutorial Package

To download the tutorial package, click on this link. This package contains required file for the tutorial.

Untar this package by following command:

tar -zxvf tutorial.tar.gz
cd tutorial
cd 1EBZ

This directory contains topology-parameter (tpr), atom-index (ndx), and trajectory (xtc) files of a HIV-1 protease inhibitor complex.

Calculation of three energy components

The binding energy consists of three energetic terms,

1. potential energy in vacuum,

2. polar-solvation energy and

3. non-polar solvation energy.

These energetic terms could be calculated in either three or one step.

Three steps calculation

1. Calculation of potential energy in Vacuum

Execute the following command:

g_mmpbsa run -f 1EBZ.xtc -s 1EBZ.tpr -n 1EBZ.ndx -pdie 2 -decomp -unit1 Protein -unit2 BEC

Here we are selecting Protein as unit-1 and BEC, which is a ligand, as unit-2. The binding energy will be calculated between the protein and ligand.

Two files energy_MM.xvg and contrib_MM.dat are generated as outputs. Both files could be generated with different name by -mm filename1.xvg and -mmcon filename2.dat.

energy_MM.xvg file contains van der Waals, electrostatic interactions, and net non-bonded potential energy between the protein and inhibitor. contrib_MM.dat contains contribution of each residue to the calculated net non-bonded interaction energy.

2. Calculation of polar solvation energy

To calculate the polar solvation energy, an input file (e.g. tutorial/polar.mdp) is required. This file contains input parameters that are used in the calculation of polar solvation energy.

Note

Please click here for details about polar solvation input parameters.

Execute the following command:

g_mmpbsa run -f 1EBZ.xtc -s 1EBZ.tpr -n 1EBZ.ndx -i ../polar.mdp -nomme -pbsa \
             -decomp -unit1 Protein -unit2 BEC -pol polar.xvg -pcon contrib_pol.dat

Two files polar.xvg and contrib_pol.dat are generated as outputs. Both files could be generated with different name by -pol filename1.xvg and -pcon filename2.dat.

polar.xvg contains polar solvation energies for unbound protein, unbound inhibitor and protein-inhibitor complex. contrib_pol.dat contains contribution of each residue to the calculated net polar solvation energy.

3. Calculation of non-polar solvation energy

To calculate the non-polar solvation energy, an input file (e.g. tutorial/apolar_sasa.mdp) is required. This file contains parameters that are used in the calculation of non-polar solvation energy.

There are several type of non-polar models that are discussed in the g_mmpbsa publication. Here, SASA-only and SAV-only model are used for which input parameter files are provided.

Note

Please click here for details about non-polar solvation input parameters.

Warning

Now WCA model is removed from the g_mmpbsa package.

For SASA-only model:

Execute the following command:

g_mmpbsa run -f 1EBZ.xtc -s 1EBZ.tpr -n 1EBZ.ndx -i ../apolar_sasa.mdp -nomme -pbsa -decomp \
             -unit1 Protein -unit2 BEC -apol sasa.xvg -apcon sasa_contrib.dat

Two files sasa.xvg and sasa_contrib.dat are generated as outputs. sasa.xvg contains non-polar solvation energy for unbound protein, unbound inhibitor and protein-inhibtor complex. sasa_contrib.dat contains contribution of each residue to the calculated net polar-solvation energy.

For SAV-only model:

Execute the following command:

g_mmpbsa run -f 1EBZ.xtc -s 1EBZ.tpr -n 1EBZ.ndx -i ../apolar_sav.mdp -nomme -pbsa -decomp \
             -unit1 Protein -unit2 BEC -apol sav.xvg -apcon sav_contrib.dat`

Two files sav.xvg and sav_contrib.dat are generated as outputs. sav.xvg contains non-polar solvation energy for unbound protein, unbound inhibitor and protein-inhibtor complex. sav_contrib.dat contains contribution of each residue to the calculated net polar-solvation energy.

One step calculation

Execute the following command:

g_mmpbsa run -f 1EBZ.xtc -s 1EBZ.tpr -n 1EBZ.ndx -i ../pbsa.mdp -pdie 2 -pbsa -decomp \
             -unit1 Protein -unit2 BEC -os energy_summary.csv \
             -ores residues_energy_summary.csv -silent

Here we are selecting Protein as unit-1 and BEC, which is a ligand, as unit-2. The binding energy will be calculated between the protein and ligand.

pbsa.mdp contains input parameters for both polar and SASA-only non-polar solvation energies. All three energetic terms are calculated by using the above single command and all output files are generated.

-os energy_summary.csv

It will also calculate average binding energy and standard deviation of all the energy terms and will be output in CSV format energy_summary.csv file provided with -os option. This file can be directly opened in MS excel or any other spreadsheet software.

"Energy"             , "Average", "Standard-Deviation",
"vDW"                , -334.587 ,               15.897,
"Electrostatic"      , -318.759 ,               32.401,
"Polar-solvation"    , 313.703  ,               10.426,
"Non-polar-solvation", -30.420  ,                1.016,
"Total"              , -370.062 ,               32.903,

-ores residues_energy_summary.csv

This file contain summary of binding energy contributions (both average and standard deviation) of residues over all frames.

The output file has following rows and columns:

"Residue", "vDW"   , "vdW-stddev", "Elec." , "Elec.-stdev", "polar", "polar-stdev", "apolar", "apolar-stdev", "total" , "total-stdev",
"PRO-1"  , -0.004  ,        0.001, 0.655   ,         0.660, -0.202 ,         0.186, 0.000   ,          0.000, 0.449   ,         0.520,
"GLN-2"  , -0.005  ,        0.000, 0.094   ,         0.074, -0.112 ,         0.060, 0.000   ,          0.000, -0.023  ,         0.032,
"ILE-3"  , -0.018  ,        0.003, -0.083  ,         0.035, 0.101  ,         0.025, 0.000   ,          0.000, -0.000  ,         0.029,
"THR-4"  , -0.014  ,        0.001, -0.013  ,         0.073, 0.004  ,         0.044, 0.000   ,          0.000, -0.022  ,         0.062,
"LEU-5"  , -0.078  ,        0.009, 0.169   ,         0.061, -0.015 ,         0.056, 0.000   ,          0.000, 0.076   ,         0.055,
"TRP-6"  , -0.039  ,        0.005, 0.164   ,         0.056, 0.009  ,         0.025, 0.000   ,          0.000, 0.134   ,         0.052,
"GLN-7"  , -0.068  ,        0.014, -0.211  ,         0.152, 0.238  ,         0.086, 0.000   ,          0.000, -0.040  ,         0.132,
"ARG-8"  , -5.167  ,        1.695, -3.454  ,         4.016, 9.184  ,         4.154, -0.637  ,          0.191, -0.074  ,         3.831,
"PRO-9"  , -0.202  ,        0.041, -0.029  ,         0.120, 0.076  ,         0.072, 0.000   ,          0.000, -0.155  ,         0.122,
"LEU-10" , -0.196  ,        0.057, -0.046  ,         0.061, 0.034  ,         0.027, 0.000   ,          0.000, -0.208  ,         0.077,
.
.
.

Average Binding Energy Calculation

The average binding energies can be directly calculated in one-step method as described above. However, the bootstrap analysis could be used to calculate the average binding energy with standard error.

To calculate average binding energy, execute following command:

g_mmpbsa average -m energy_MM.xvg -p polar.xvg -a apolar.xvg -bs

Three output files full_energy.dat, summary_energy.dat and summary_energy.csv are obtained. Both summary_energy.dat and summary_energy.csv contains average and standard deviations of all energetic components including the binding energy as follows:

#Complex Number:    1
===============
   SUMMARY
===============

 van der Waal energy      =        -334.587   +/-   15.514 kJ/mol

 Electrostattic energy    =        -159.380   +/-   15.810 kJ/mol

 Polar solvation energy   =         313.698   +/-   10.174 kJ/mol

 SASA energy              =         -30.431   +/-    0.996 kJ/mol

 SAV energy               =           0.000   +/-    0.000 kJ/mol

 WCA energy               =           0.000   +/-    0.000 kJ/mol

 Binding energy           =        -210.699   +/-   19.745 kJ/mol

===============
    END
===============

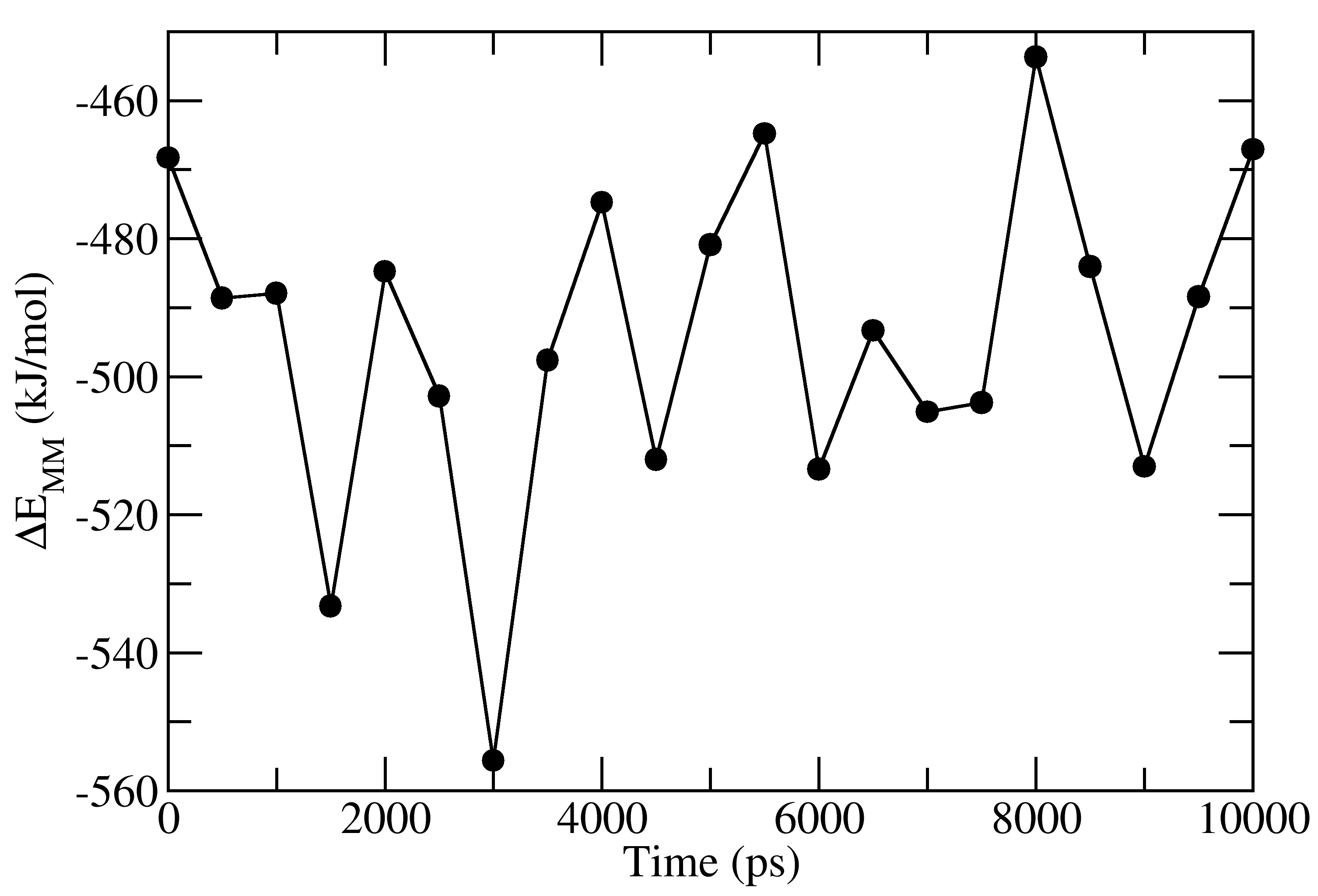

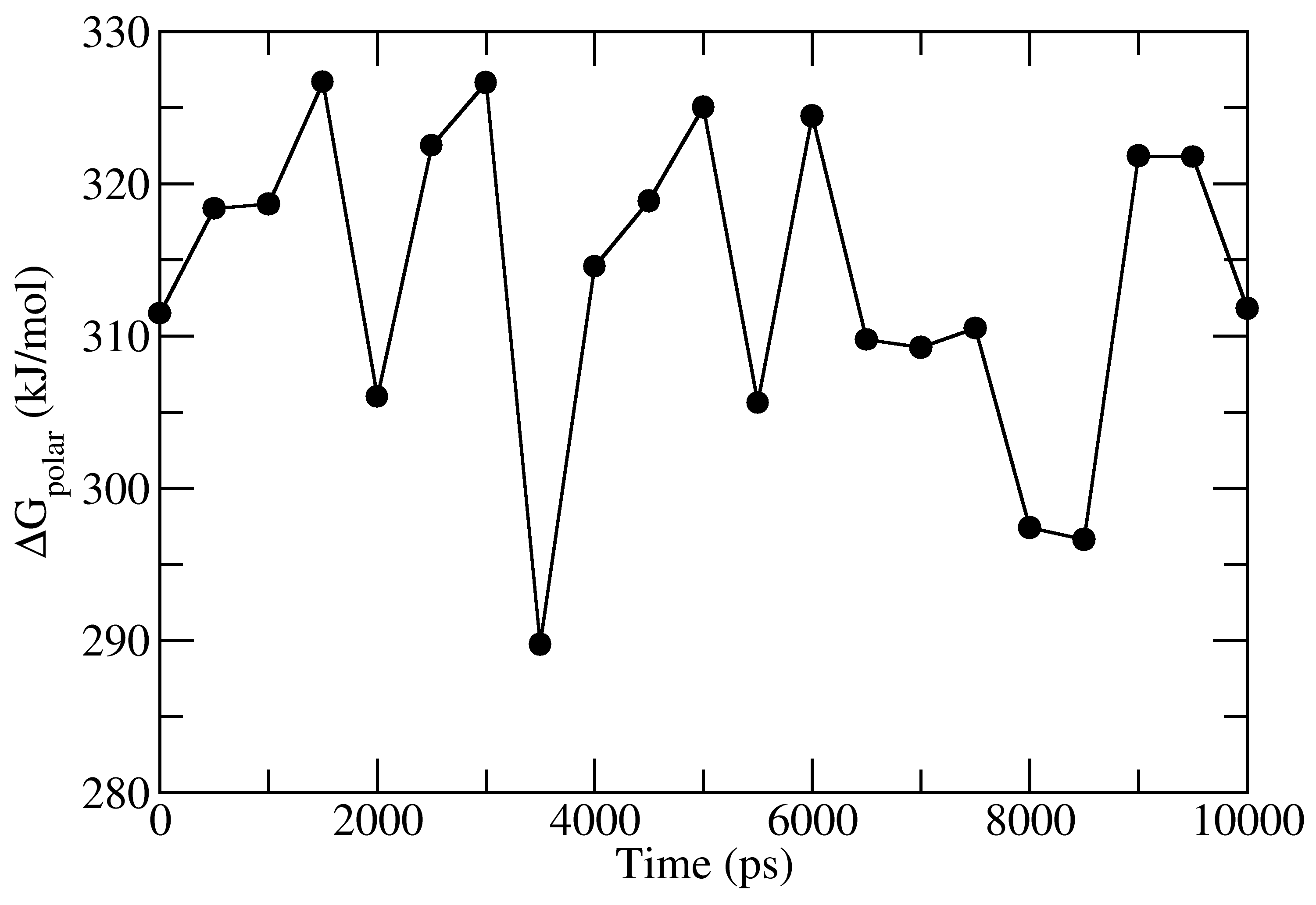

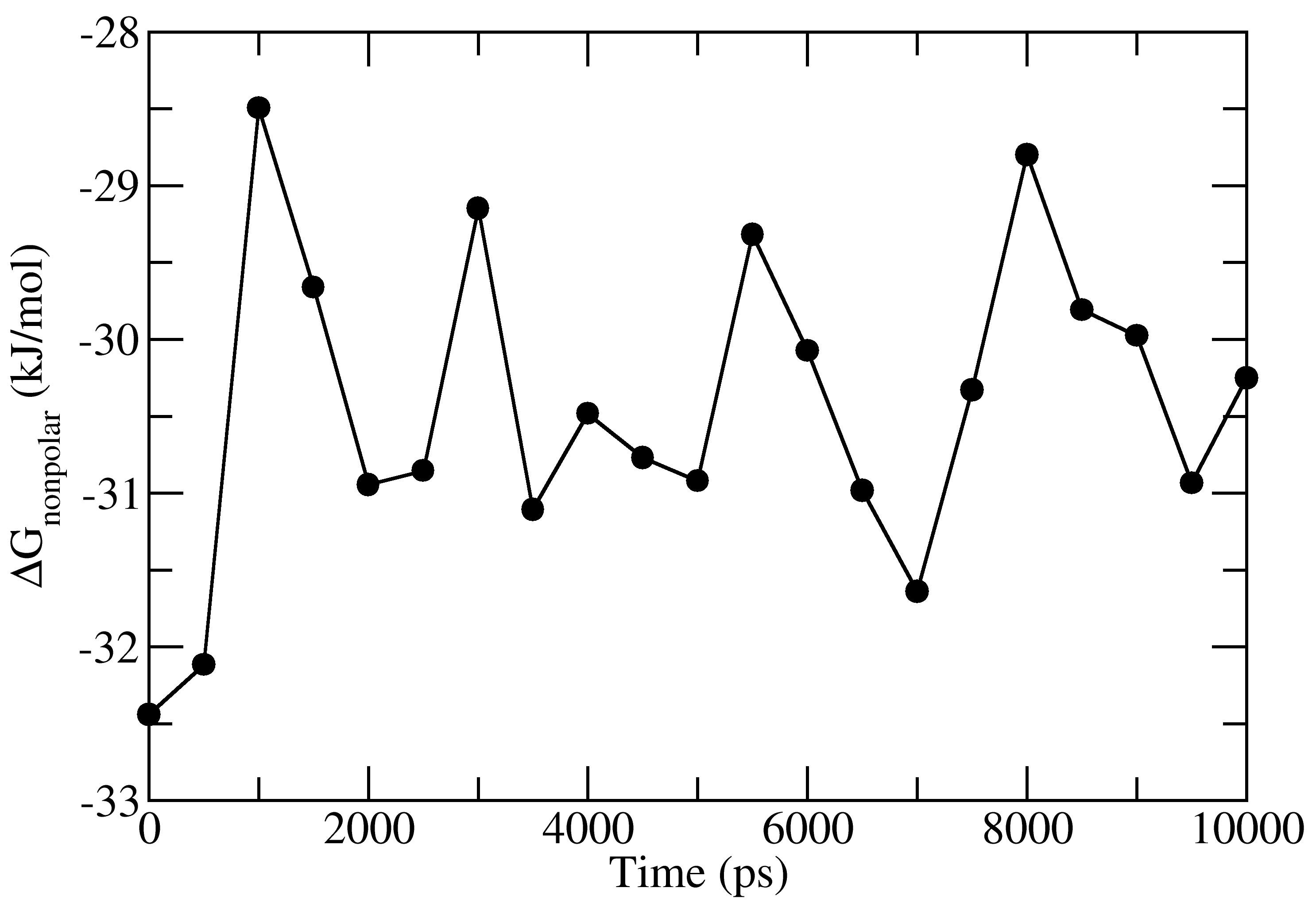

full_energy.dat contains the values of energetic terms as a function of time. Last four columns contains Δ_E__MM, Δ_G__polar, Δ_G__nonpolar and Δ_G__binding as a function of time. These quantities could be plotted with xmgrace/matplotlib/gnuplot. The respective four files in xmgrace format (_agr_) are provided in tutorial/1EBZ/output

To calculate average binding energy by using bootstrap analysis, execute following command:

g_mmpbsa run -bs -nbs 2000 -m energy_MM.xvg -p polar.xvg -a apolar.xvg

Again, two output files full_energy.dat and summary_energy.dat are generated as outputs. full_energy.dat is similar to that of the above one. However, summary_energy.dat contains average and standard error of all energetic components including the binding energy. Average values in summary_energy.dat are slightly different from the above one. For more details about this method, please follow the g_mmpbsa publication.
